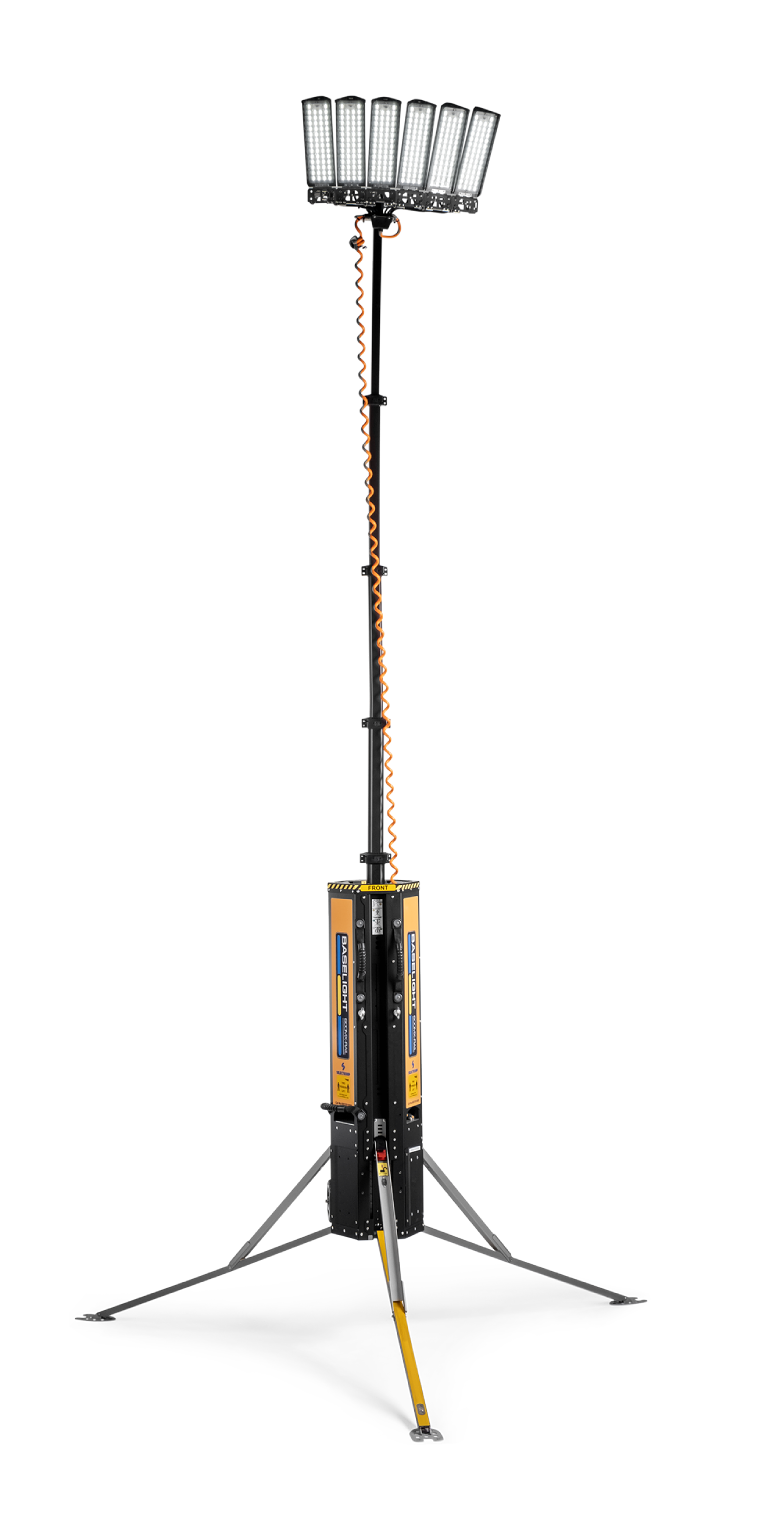

Baselight 600mx Rail

The Baselight 600mx RAIL is the perfect solution for track-side use, even under high-voltage cables. Designed to be ergonomical and environmentally friendly, it offers the highest safety standards with a minimal footprint.

For more details

Contact SALES
For more details

The Baselight light towers are ideal for railway maintenance work. The light-weight, compact design and powerful LED lights provide excellent light conditions even in remote areas where power supply can be unrealiable. Baselight 600mx RAIL can be powered by any power source including a portable, external battery. It delivers noise-free operation and has no fumes, oil, or spills to worry about.

The LED fixture delivers 95 000 lumens and can illuminate an area of 11 300 m2 at 5 lux. While delivering heavyweight performance, the 600mx RAIL is still easy to move around a worksite, lift into a vehicle, or transport on a pallet. For added convenience the mast can be raised and lowered automatically by simply pressing a button or via the smartphone app.

  • CERTIFIED FOR WORK UNDER & AROUND HIGH-VOLTAGE CABLES
  • LIGHTS UP 11 300 M2 AT 5 LUX
  • REMOTE CONTROL WITH THE BASELIGHT APP
  • CAN WITHSTAND WINDS UP TO 25 M/S
Technical Details
Mast Electrical
Weight 48 kg
Lumen 95 000
Dimmable Yes
Beam Angle 180°-360°
Iluminated area in m2 at 5 lux 11 300 m2
IP IP65
Watt 670 W
Voltage Range 100-240 V
Temperature -30°C to 50°C
Standard Connector/Socket* (Other solutions available) CEE 16A
DC Outlet/Inlet No
Wind resistance 25 m/s
Serial connect / Daisy chain Yes
LED panels 6
Litihium battery, built in No
Solar panels No
Wifi (iOS/Android) Yes
Measurements (H x W x D)
Collapsed unit 120 x 32 x 40 cm
Deployed unit 4,4 x 2,2 x 2,2 m
With packaging 127 x 39 x 47 cm
Weight packing material 6 kg
Warranty
Warranty mechanical parts 3 years
Warranty electonical parts 1 year
Warranty LED 10 years (or 50 000 h)
Product details
Manufacturer article number PDFA12/PDFA11
Country of Origin Denmark
Product Name Baselight 600mx RAIL
Product Category Light Tower
