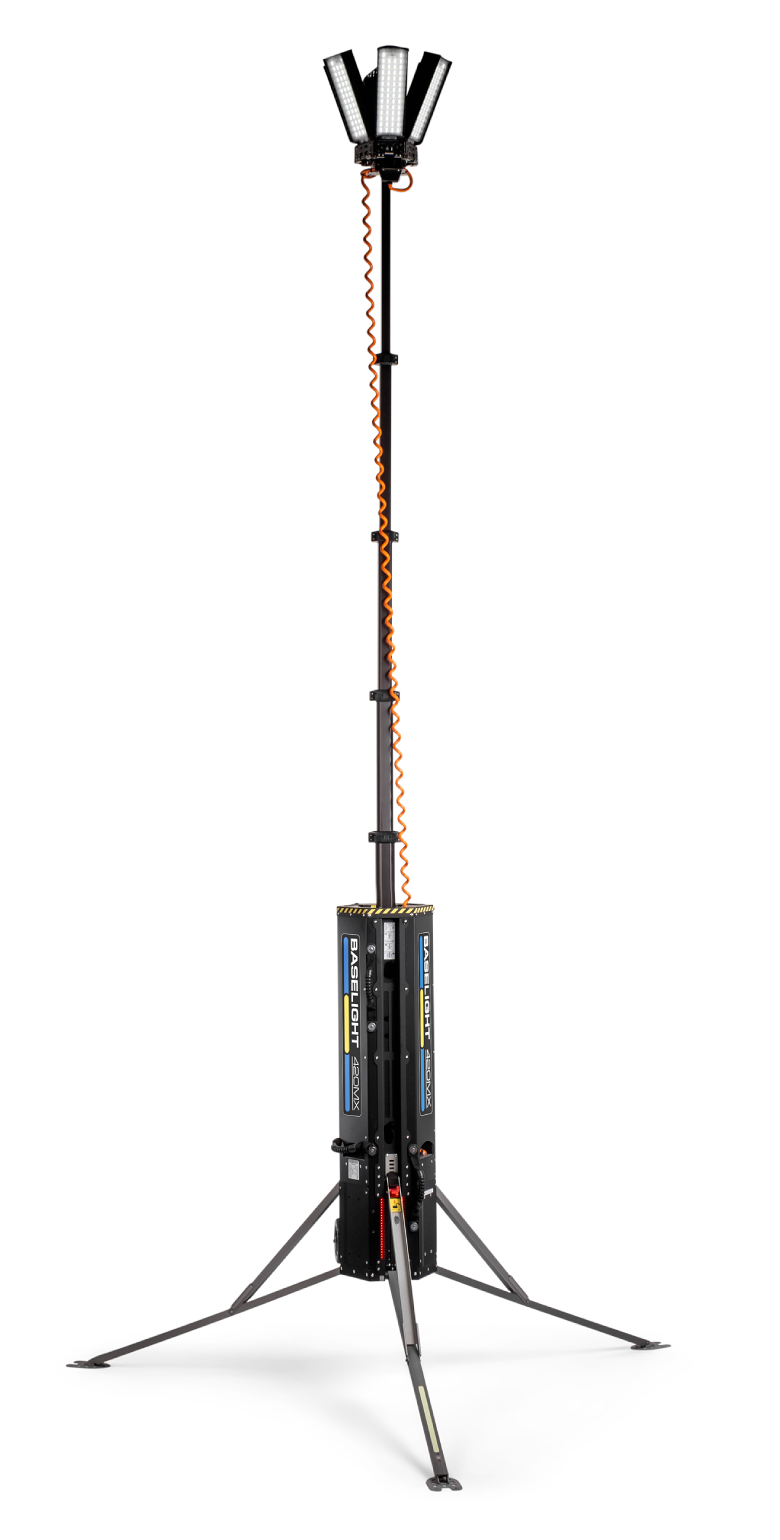

Baselight 420mx

The Baselight 420mx has a chain-driven mast system powered by an electric motor for easy operation. The easy operation and powerful output makes the mx series our most advanced all-in-one area lighting system.

For more details

Contact SALES
For more details

The mast on Baselight 420mx can be raised and lowered automatically by simply pressing a button or via the smartphone app. Topped off with a LED fixture that delivers 65 000 lumens, the light tower can illuminate an area of 7 650 m2 at 5 lux.

While delivering heavyweight performance, the 420mx is still easy to move around a worksite, lift into a vehicle, or transport on a pallet. Multiple ergonomic handles makes it easy to work with, and the robust construction can withstand the most extreme conditions and winds up to 25 m/s.

  • INTEGRATED WHEELS FOR EASY TRANSPORT AND USE
  • LIGHTS UP 7 650 M2 AT 5 LUX
  • REMOTE CONTROL WITH THE BASELIGHT APP
  • AUTOMATIC LIGHT ADJUSTMENT FOR OPTIMAL PERFORMANCE
Technical Details
Mast Electrical
Weight 46 kg
Lumen 65 000
Dimmable Yes
Beam Angle 180°-360°
Iluminated area in m2 at 5 lux 7 650 m2
IP IP65
Watt 0-420 W
Voltage Range 100-240 V
Temperature -30°C to 50°C
Standard Connector/Socket* (Other solutions available) CEE 16A
DC Outlet/Inlet No
Wind resistance 25 m/s
Serial connect / Daisy chain Yes
LED panels 6
Litihium battery, built in No
Solar panels No
Wifi (iOS/Android) Yes
Measurements (H x W x D)
Collapsed unit 120 x 32 x 40 cm
Deployed unit 4,4 x 2,2 x 2,2 m
With packaging 127 x 39 x 47 cm
Weight packing material 6 kg
Warranty
Warranty mechanical parts 3 years
Warranty electonical parts 1 year
Warranty LED 10 years (or 50 000 h)
Product details
Manufacturer article number PDFA04/PDFA03
Country of Origin Denmark
Product Name Baselight 420mx
Product Category Light Tower
