Baselight 320x Battery

The 320x Battery offers the ultimate portable lighting solution if or when you don’t have access to the power grid. The built-in battery offers up to 45 000 lumens to provide area light in all kinds of environments and terrains.

For more details

Contact SALES
For more details

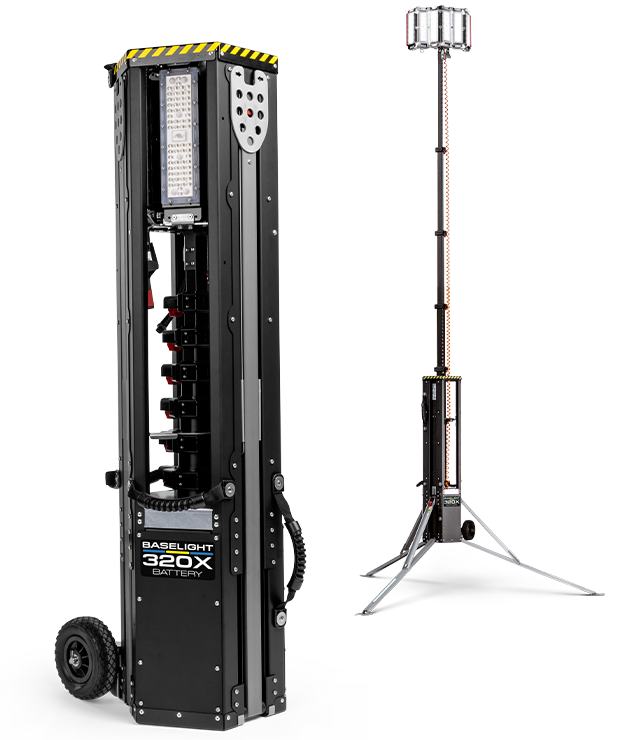

The all-in-one design of 320x completely eliminates the need for power cables. The battery illuminates 4 600 m2 at 5 lux. With a total weight of 41 kg it is easy to transport. The LED luminaire can provide light at 360 or 180 degrees and can be tilted up or down.

Baselight requires no maintenance and the modular
design makes repairs quick and easy. Designed for in- and outdoor use, the durable construction is made to withstand extreme conditions and winds up to 25/s.

  • TRULY PORTABLE AREA LIGHTING FOR EASY TRANSPORT AND USE.

  • FULL CHARGE IN 3 HOURS WITH SOLAR PANELS.

  • REMOTE CONTROL WITH THE BASELIGHT APP.

  • AUTOMATIC LIGHT ADJUSTMENT FOR OPTIMAL PERFORMANCE.

Download image
Technical details
Mast Manual
Weight 41 kg
Lumen 45 000
Dimmable Yes
Beam Angle 180°-360°
Iluminated area in m2 at 5 lux 4 600 m2
IP IP65
Watt 0-320 W
Voltage Range 100-240 V
Temperature -30°C to 45°C
Standard Connector/Socket* (Other solutions available) Neutric
DC Outlet/Inlet Yes
Wind resistance 25 m/s
Serial connect / Daisy chain Yes
LED panels 6
Litihium battery, built in Yes, 936 Wh
Solar panels No (optional)
Wifi (iOS/Android) Yes
Measurements (H x W x D)
Collapsed unit 120 x 32 x 40 cm
Deployed unit 4,4 x 2,2 x 2,2 m
With packaging 127 x 39 x 47 cm
Weight packing material 6 kg
Warranty
Warranty mechanical parts 3 years
Warranty electonical parts 1 year
Warranty LED 10 years (or 50 000 h)
Product details
Manufacturer article number PDFA228
Country of Origin Denmark
Product Name Baselight 320x Battery
Product Category Light Tower
Download Specs
Download Specs

Product Gallery

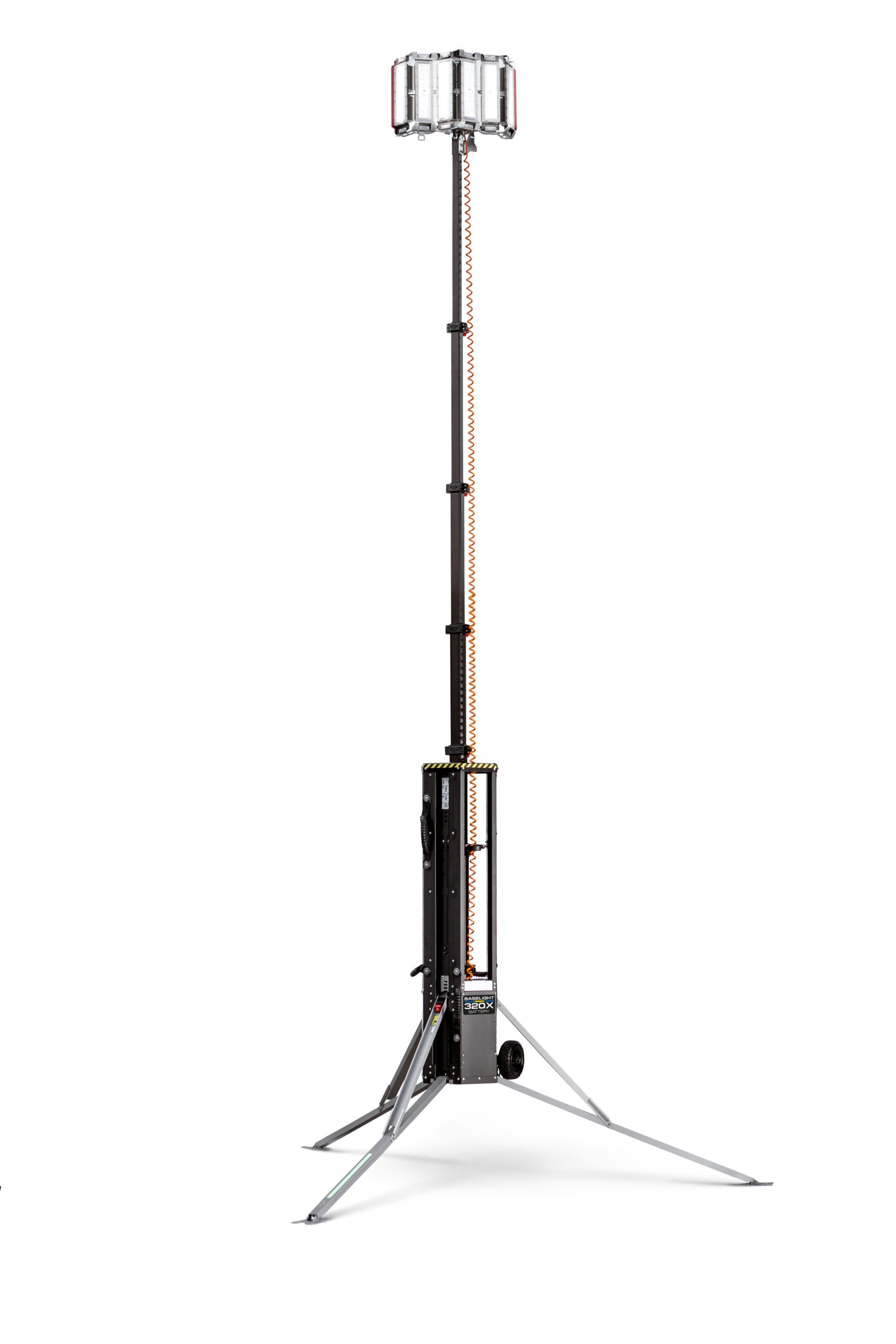

Baselight 320x Light Tower, deployed, lowest position

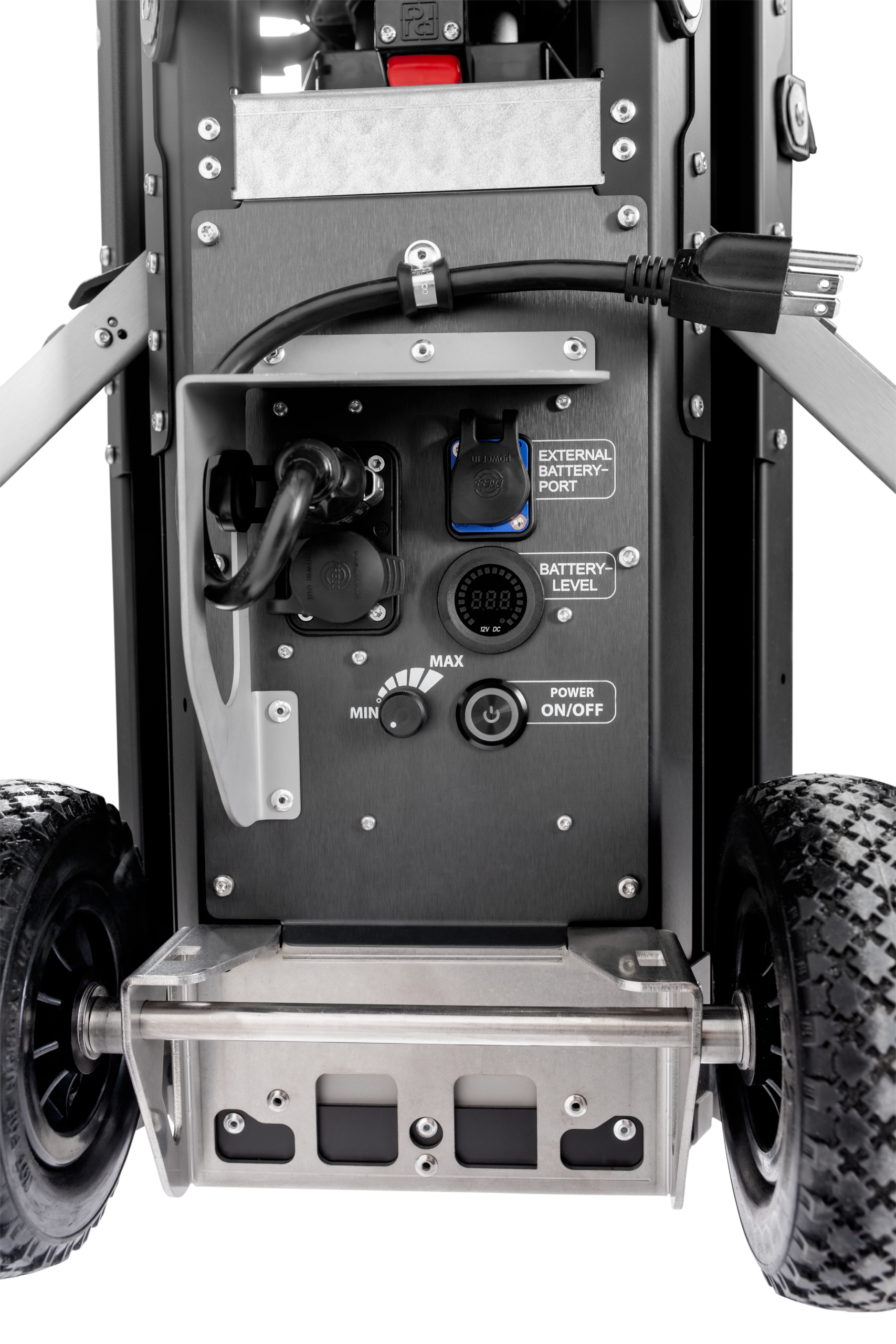

320x Solar detail 3
Baselight 320x Light Tower, deployed, with collapsed mast
Baselight 320x Light Tower leg
Baselight 320x Light Tower leg closeup
Baselight 320x Light Tower LED set in 360° position
Baselight 320x Light Tower top with the LED set
Baselight 320x Light Tower LED zoomed closeup
Baselight 320x Light Tower top LED set in 180° position
Baselight 320x Light Tower top with the LED set tilted backward
Baselight 320x Light Tower LED set tilted forward
Baselight 320x Light Tower LED set backside closeup
Baselight 320x Light Tower LED set connectors
Baselight 320x Light Tower details
Baselight 320x Light Tower power buttons and connectors
Baselight 320x Light Tower details
Baselight 320x Light Tower handle
Baselight 320x Light Tower details
Baselight 320x Light Tower wheels
Baselight 320x Light Tower in action
Baselight 320x Light Tower in action
Baselight 320x Light Tower in action
Baselight 320x Light Tower in action
Baselight 320x Light Tower in action
Baselight 320x Light Tower in action
Baselight 320x and 600mx MIL Light Towers in action
